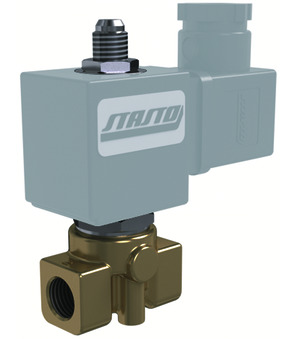

3/2-way solenoid valve 31A2AV25-BDA08042AS-C003-31-CV20-6

3/2-way solenoid valve 31A2AV25-BDA08042AS-C003-31-CV20-6

31A2AV25
3/2-way solenoid valve Series 31A; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/4"; DN 2,5/2,5mm; Pressure AC/DC 0-6bar; Length 40mm
BDA08042AS
Coil Type BDA; Standard; Connector size 32mm; Voltage 42V/50Hz
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC

Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.46 Kg
Short Itemnumber: 31A2AV25BDA08042ASC00331CV206
https://www.stasto.ro/web/image/product.template/195472/image_1920?unique=eb38ccc

31A2AV25
3/2-way solenoid valve series 31A; directly operated; NC; body brass; tube stainless steel one-piece; seal FKM; medium temperature -10...+120°C; standard coil BDA; connector size 32mm; G 1/4"; DN 2,5/2,5mm; pressure AC/DC 0-6bar; length 40mm
BDA08042AS
coil type BDA; standard; connector size 32mm; voltage 42V/50Hz
C003-31-CV20-6
connector; connector size 32mm; with moulded PVC-cable (2 m); voltage 0...250VAC/DC

482,50 lei 482.5 RON 482,50 lei

Not Available For Sale

  • Female thread
  • DN
  • Length
  • Cable length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC/DC
  • Seal
  • Coil
  • Medium temperature
  • Approval
