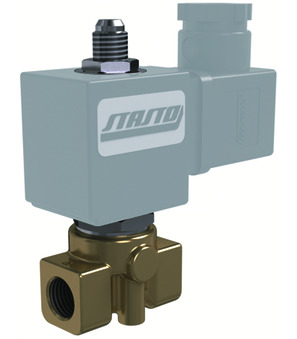

3/2-way solenoid valve 31A2AV15-BDA08110DS-C003-32-LV-1

3/2-way solenoid valve 31A2AV15-BDA08110DS-C003-32-LV-1

31A2AV15
3/2-way solenoid valve Series 31A; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/4"; DN 1,5/2,5mm; Pressure AC/DC 0-15bar; Length 40mm
BDA08110DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 110V/50-60Hz
C003-32-LV-1
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 230VAC/DC

Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.33 Kg
Short Itemnumber: 31A2AV15BDA08110DSC00332LV1
https://www.stasto.ro/web/image/product.template/195423/image_1920?unique=eb38ccc

31A2AV15
3/2-way solenoid valve series 31A; directly operated; NC; body brass; tube stainless steel one-piece; seal FKM; medium temperature -10...+120°C; standard coil BDA; connector size 32mm; G 1/4"; DN 1,5/2,5mm; pressure AC/DC 0-15bar; length 40mm
BDA08110DS
coil type BDA; standard; connector size 32mm; voltage 110V/50-60Hz
C003-32-LV-1
connector; connector size 32mm; with integrated LED-yellow and VDR; voltage 230VAC/DC

438,60 lei 438.6 RON 438,60 lei

Not Available For Sale

  • Female thread
  • DN
  • Length
  • Cable length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC/DC
  • Seal
  • Coil
  • Medium temperature
  • Approval
