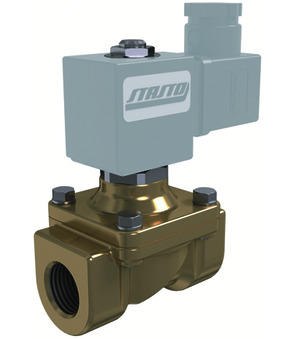

2/2-way solenoid valve 21HT5K0Y160-R453382-B-BDV08230AY-C003-32-LV-1

2/2-way solenoid valve 21HT5K0Y160-R453382-B-BDV08230AY-C003-32-LV-1

21HT5K0Y160
2/2-way solenoid valve Series 21H..K0Y; Combined operated; NC; Body Brass; Stainless steel tube; Seal NBR; Medium temperature -10...+90°C; Connector size 32mm; G 3/4"; DN 16mm; Pressure AC 0-14bar; Pressure DC 0-1,5bar; Length 70mm; Standard coil BDA
R453382-B
Sealing kit; Coil BDV
BDV08230AY
Coil Type BDV; For humid area; Approval CSA/UL/VDE; Connector size 32mm; Voltage 230V/50Hz, 240V/60Hz
C003-32-LV-1
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 230VAC/DC

2/2-Wege-Magnetventil Serie 21H..K0Y
Intrastat No.: 84818099
Country of origin: Italy Made in Europe
Weight: 0.77 Kg
Short Itemnumber: 21HT5K0Y160R453382BBDV08230AYC00332LV1
https://www.stasto.ro/web/image/product.template/241310/image_1920?unique=8f49329

21HT5K0Y160
2/2-way solenoid valve Series 21H..K0Y; Combined operated; NC; Body Brass; Stainless steel tube; Seal NBR; Medium temperature -10...+90°C; Connector size 32mm; G 3/4"; DN 16mm; Pressure AC 0-14bar; Pressure DC 0-1,5bar; Length 70mm; Standard coil BDA
BDV08230AY
Coil Type BDV; For humid area; Approval CSA/UL/VDE; Connector size 32mm; Voltage 230V/50Hz, 240V/60Hz

760,40 lei 760.4 RON 760,40 lei

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Female thread G 3/4"
DN 16 mm
Length 70 mm
Pressure AC 0...14 bar
All specifications (11)
Documents
Data sheets, drawings and CAD files
Female thread G 3/4"
DN 16 mm
Length 70 mm
Pressure AC 0...14 bar
Pressure DC 0...1,5 bar
Seal NBR
Medium temperature -10...+90 °C
Voltage 230V/50Hz-240V/60Hz
Approval UL/CSA/VDE
Design With integrated LED-yellow and VDR
Voltage type AC

21HT5K0Y160-R453382-B-BDV08230AY-C003-32-LV-1
