21HT3K0V110-BDV08230AY

21HT3K0V110-BDV08230AY

21HT3K0V110

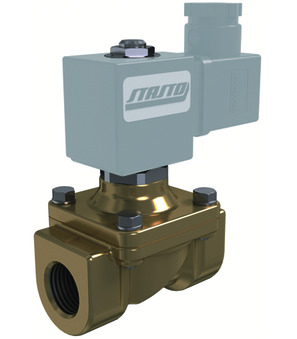

2/2-way solenoid valve Series 21H..K0V; Combined operated; NC; Body Brass; Stainless steel tube; Seal FKM; Connector size 32mm; G 3/8"; DN 11mm; Pressure AC 0-14bar; Pressure DC 0-5bar; Medium -10/+120°C; Length 56mm; Standard coil BDA
BDV08230AY
Coil Type BDV; For humid area; Approval CSA/UL/VDE; Connector size 32mm; Voltage 230V/50Hz, 240V/60Hz

2/2-Wege-Magnetventil Serie 21H..K0V

Country of origin: Italy Made in Europe
Weight: 0.55 Kg
Short Itemnumber: 21HT3K0V110BDV08230AY
https://www.stasto.ro/web/image/product.template/244030/image_1920?unique=8f49329

NWT40-100
profile magnetic cylinder series NWT; according to ISO 15552, VDMA; double acting; pressure range 0,5...10bar; adjustable cushions; diameter 40mm; stroke 100mm; piston rod thread M12x1,25; connection 1/4"; push force at 6 bar 754N

691,00 lei 691.0 RON 691,00 lei

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Female thread G 3/8"
DN 11 mm
Length 56 mm
Pressure AC 0...14 bar
All specifications (10)
Documents
Data sheets, drawings and CAD files
Female thread G 3/8"
DN 11 mm
Length 56 mm
Pressure AC 0...14 bar
Pressure DC 0...5 bar
Seal FKM
Medium temperature -10...+120 °C
Voltage 230V/50Hz-240V/60Hz
Approval UL/CSA/VDE
Voltage type AC
