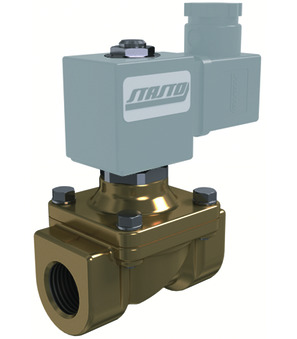

2/2-way solenoid valve 21HF8K0V400-GDV

2/2-way solenoid valve 21HF8K0V400-GDV

2/2-way solenoid valve Series 21H..K0V; Combined operated; NC; Body Brass; Stainless steel tube; Seal FKM; Connector size 32mm; G 11/2"; DN 40mm; Pressure AC 0-16bar; Pressure DC 0-6bar; Medium -10/+140°C; Length 128mm; Standard coil GDV

Intrastat No.: 84812090
Country of origin: Italy
Weight: 2.231 Kg
Short Itemnumber: 21HF8K0V400GDV
https://www.stasto.ro/web/image/product.template/118295/image_1920?unique=62bea0b

2/2-way solenoid valve series 21H..K0V; combined operated; NC; body brass; stainless steel tube; seal FKM; connector size 32mm; G 11/2"; DN 40mm; pressure AC 0-16bar; pressure DC 0-6bar; medium -10/+140°C; length 128mm; standard coil GDV

1.773,80 lei 1773.8 RON 1.773,80 lei

Not Available For Sale

  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread G 1 1/2"
DN 40 mm
Length 128 mm
Designs
Connector size 32 mm
pressure
Pressure AC 0...16 bar
Pressure DC 0...6 bar
materials
Seal FKM
characteristics
Coil GDV
Medium temperature -10...+140 °C
