21A16KV25-BDV08024DY-C003-31-CV20-6
21A16KV25

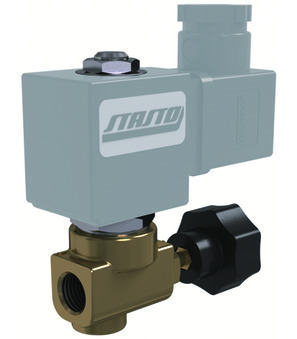

2/2-way solenoid valve Series 21A16; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Flow control; Standard coil BDV; Connector size 32mm; G 1/4"; DN 2,5mm; Pressure AC 0-14bar; Pressure DC 0-9bar; Seal FKM; Medium -10/+140°C; Length 32,5mm
BDV08024DY
Coil Type BDV; For humid area; Approval CSA/UL/VDE; Connector size 32mm; Voltage 24V/50-60Hz
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC
Country of origin: Italy
Weight: 0.48 Kg
Short Itemnumber: 21A16KV25BDV08024DYC00331CV206
21A16KV25
2/2-way solenoid valve series 21A16; directly operated; NC; body brass; tube stainless steel one-piece; flow control; standard coil BDV; connector size 32mm; G 1/4"; DN 2,5mm; pressure AC 0-14bar; pressure DC 0-9bar; seal FKM; medium -10/+140°C; length 32,5mm
BDV08024DY
coil type BDV; for humid area; approval CSA/UL/VDE; connector size 32mm; voltage 24V/50-60Hz
C003-31-CV20-6
connector; connector size 32mm; with moulded PVC-cable (2 m); voltage 0...250VAC/DC
