3/2-way valve Series PM140, MA

Nominal diameter 2,5mm; Pressure range 0...10bar; Flow rate 60Nl/min; Actuation Cam/spring; Operating force at 6 bar: 12N

To Series: 3/2-way valve Series PM140, MA

Grundversion

Connection	Function	Flow rate	Type	Sequence
4 mm	NC	90 Nl/min	PM140-04-C	3490001
4 mm	NO	60 Nl/min	MA314	3490002

3/2-way valve Series MV

Nominal diameter 2,5mm; For panel mounting; Pressure range 0...10bar; Flow rate 60Nl/min; Actuation Cam/spring; Operating force at 6 bar: 12N

To Series: 3/2-way valve Series MV

Grundversion

Connection	DN	Function	Actuation	Actuating force at 6 bar	Type	Sequence
4 mm	2,5 mm	NO	Cam/spring	6 N	MV314	3500000
4 mm	2,5 mm	NC	Cam/spring	6 N	MV304	3500001

5/2-way valve Series VCMS

Pressure range 0...10bar; Actuation Cam/spring

To Series: 5/2-way valve Series VCMS

Grundversion

Connection	DN	Flow rate	Actuating force at 6 bar	Type	Sequence
1/8"	6 mm	650 Nl/min	35 N	VCMS52M18	3510000
1/4"	8 mm	1080 Nl/min	64 N	VCMS52M14	3510001

3/2-way valve Series VCMS

Pressure range 0...10bar; Actuation Cam/spring; NC

To Series: 3/2-way valve Series VCMS

Grundversion

Connection	DN	Function	Actuation	Flow rate	Actuating force at 6 bar	Type	Sequence
1/8"	6 mm	NC	Cam/spring	650 Nl/min	35 N	VCMS326M8	3520000
1/4"	8 mm	NC	Cam/spring	1080 Nl/min	50 N	VCMS326M4	3520001

3/2-way valve Series PM141, MR

Nominal diameter 2,5mm; Pressure range 0...10bar; Actuation Roller/spring; Operating force at 6 bar: 12N

To Series: 3/2-way valve Series PM141, MR

Grundversion

Connection	DN	Function	Actuation	Flow rate	Actuating force at 6 bar	Type	Sequence
4 mm	2,5 mm	NO	Roller/spring	60 Nl/min	6 N	MR314	3530000
4 mm	2,5 mm	NC	Roller/spring	90 Nl/min	6 N	PM141-04-C	3530002

3/2-way valve Series PM142, MS

Nominal diameter 2,5mm; Pressure range 0...10bar; Actuation Unidirectional lever/spring; Operating force at 6 bar: 12N

To Series: 3/2-way valve Series PM142, MS

Grundversion

Connection	DN	Function	Actuation	Flow rate	Actuating force at 6 bar	Type	Sequence
4 mm	2,5 mm	NO	Unidirectional lever/spring	60 Nl/min	6 N	MS314	3540000
4 mm	2,5 mm	NC	Unidirectional lever/spring	90 Nl/min	12 N	PM142-04-C	3540002

3/2-way valve Series VCLL

Nominal diameter 6mm; Pressure range 0...10bar; Flow rate 650Nl/min; Actuation Roller/spring; Operating force at 6 bar: 22N

To Series: 3/2-way valve Series VCLL

Grundversion

Connection	Exhaust port	DN	Function	Actuation	Actuating force at 6 bar	Type	Sequence
1/8"	1/8"	6 mm	NO	Unidirectional lever/spring	22 N	VCLL329M8	3550000
1/8"	1/8"	6 mm	NC	Unidirectional lever/spring	22 N	VCLL326M8	3550002

3/2-way valve Series VCLR

Nominal diameter 6mm; Pressure range 0...10bar; Flow rate 650Nl/min; Actuation Roller/spring; Operating force at 6 bar: 22N

To Series: 3/2-way valve Series VCLR

Grundversion

Connection	Exhaust port	DN	Function	Actuation	Actuating force at 6 bar	Type	Sequence
1/8"	1/8"	6 mm	NO	Roller/spring	22 N	VCLR329M8	3560000
1/8"	1/8"	6 mm	NC	Roller/spring	22 N	VCLR326M8	3560001

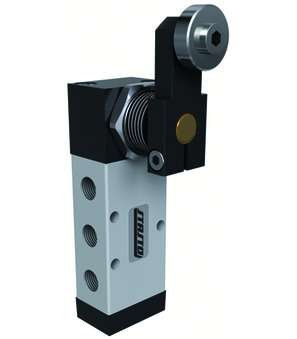

VCLR52M18

5/2-way valve Series VCLR; Nominal diameter 6mm; Pressure range 0...10bar; Flow rate 650Nl/min; Actuation Roller/spring; Operating force at 6 bar: 22N; Connection 1/8"

To Series: 5/2-way valve Series VCLR

Connection	Exhaust port	DN	Actuating force at 6 bar	Type
1/8"	1/8"	6 mm	22 N	VCLR52M18

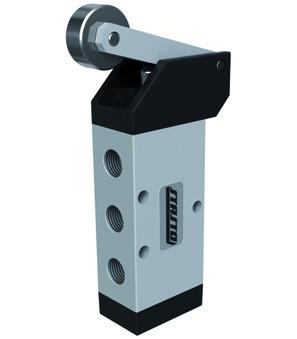

VCLL52M18

5/2-way valve Series VCLL; Nominal diameter 6mm; Pressure range 0...10bar; Flow rate 650Nl/min; Actuation Roller/spring; Operating force at 6 bar: 22N; Connection 1/8"

To Series: 5/2-way valve Series VCLL

Connection	Exhaust port	DN	Actuating force at 6 bar	Type
1/8"	1/8"	6 mm	22 N	VCLL52M18

3/2-way valve Series PM144, PGI

Nominal diameter 2,5mm; Pressure range 0...10bar; Flow rate 60Nl/min; Actuation Pushbutton/spring; Operating force at 6 bar: 12N; Button colour Black
