Valves, butterfly valves and gate valves - automatically operated
BAB1-007-BLTV-D0B-ABS51-C001-03-C002-31-6-EB0X01
BAB1-007-BLTV-D0B
ball valve with pneumatic actuator series BAB1; body, ball brass; seals PTFE/FKM/EPDM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 11/4"; nominal diameter 32mm; pressure range 0-40bar; length 102mm; actuator PAD052
ABS51
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC
EB0X01
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831613; contact material silver-nickel; material of case plastic
To Series: Ball valve with pneumatic actuator Series BAB1
Female thread DN Length Pressure range Voltage Design Voltage type Switch type Contact material Material of case Function Diameter Male thread Type
RP 1 1/4" 32 mm 102 mm 0...40 bar 24VDC / 48V/50-60Hz Standard - Crouzet 831613 Silver-nickel Plastic - - - BAB1-007-BLTV-D0B-ABS51-C001-03-C002-31-6-EB0X01

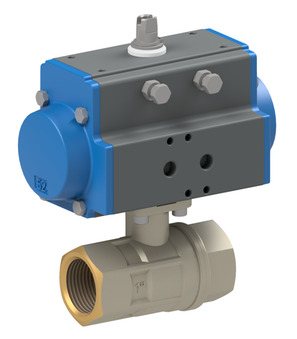

Ball valve with pneumatic actuator Series BAB1

Ball valve with pneumatic actuator Series BAB1

Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Kugelhahn mit Druckluftdrehantrieb Serie BAB1 Kugelhahn mit Druckluftdrehantrieb Serie BAB1 Kugelhahn mit Druckluftdrehantrieb Serie BAB1
To Series: Ball valve with pneumatic actuator Series BAB1
Varianten
Female thread DN Length Pressure range Voltage Design Switch type Contact material Material of case Type Sequence
RP 1" 25 mm 90 mm 0...64 bar 24VDC / 48V/50-60Hz Standard Crouzet 831613 Silver-nickel Plastic BAB1-006-SSTV-D0B-ABS51-C001-03-C002-31-6-EB0X01 25060027
RP 1 1/2" 40 mm 112 mm 0...40 bar 24VDC / 48V/50-60Hz Standard Crouzet 831613 Silver-nickel Plastic BAB1-008-SSTV-D0-ABS51-C001-03-C002-31-6-EB0X01 25060048
Pneumatic actuator Series PAD

Pneumatic actuator Series PAD

ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar

Druckluftdrehantrieb Serie PAD Druckluftdrehantrieb Serie PAD Druckluftdrehantrieb Serie PAD
To Series: Pneumatic actuator Series PAD
Varianten
Diameter Flange ISO5211 Female square Control pressure Torque at 5,5bar Voltage Design Diameter Hose Connection Direction of flow control Outlet pressure Type Sequence
75 mm F05/F07 17 mm 1...8 bar 66 Nm 24VDC / 48V/50-60Hz ATEX - - - - PAD075-ABS54-C001-03-C002-31-LV-2-EB0X02X-WST-HVB 25600009
100 mm F07/F10 17 mm 1...8 bar 150 Nm 230V/50-60Hz ATEX - - - - PAD100-MFFALFUAL09733-ABS54-PI06-C001-22-C002-31-6 25600014
125 mm F07/F10 22 mm 1...8 bar 327 Nm - ATEX 8 mm 1/4" From thread to hose (outgoing air) - PAD125-UFC05-C-14-08 25600019
125 mm F07/F10 22 mm 1...8 bar 327 Nm 24VDC / 48V/50-60Hz ATEX - - - - PAD125-ABS54-C001-03-C002-31-LV-2-EB0X02X-WST-HVB 25600020
BA091-65-D0-A-01-EP0S11PZZ-EX
BA091-65-D0-A-01
ball valve with pneumatic actuator series BA091-D0B/D01-A; ATEX II 2 G/D; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; double acting actuator ATEX II 2 G/D c T6, oversized; control pressure 5,5...8bar; medium temperature -20...+198°C; nominal diameter 65mm; pressure range steam 0...15bar; length 153mm; actuator PAD100
EP0S11PZZ-EX
mounted positioner; digital I/P-positioner, 4-20mA; position feedback 4-20mA; II2G Ex ia IIC T4 Gb; area 1; actuator PAD052-270
To Series: Ball valve with pneumatic actuator Series BA091-D0B/D01-A
DN Length Pressure range Pressure range Steam Design Type
65 mm 153 mm 0...16 bar 0...15 bar ATEX BA091-65-D0-A-01-EP0S11PZZ-EX
2/2-way coaxial valve Series CSE01/02-AT

2/2-way coaxial valve Series CSE01/02-AT

Body Aluminum; Seals PTFE/FKM; Female thread; Medium temperature -20...+120°C; Back pressure tight; Bi-directional flow

To Series: 2/2-way coaxial valve Series CSE01/02-AT
Grundversion
Female thread DN Function Operating pressure Control pressure Voltage Design Type Sequence
G 3/8" 10 mm NO 0...16 bar 4...8 bar - - CSE02-38-10-AT 30850000
G 3/8" 10 mm NC 0...16 bar 3...8 bar - - CSE01-38-10-AT 30850007
Varianten
Female thread DN Function Operating pressure Control pressure Voltage Design Type Sequence
G 3/8" 10 mm NO 0...16 bar 4...8 bar 230V/50-60Hz Standard CSE02-38-10-AT-ABS77-C001-22-C002-31-6 30850001
G 3/8" 10 mm NO 0...16 bar 4...8 bar 230V/50-60Hz With integrated LED-yellow and VDR CSE02-38-10-AT-ABS77-C001-22-C002-31-LV-1 30850002
G 3/8" 10 mm NO 0...16 bar 4...8 bar 230V/50-60Hz With integrated LED-yellow, VDR and PVC-cable (2 m) CSE02-38-10-AT-ABS77-C001-22-C002-31-LVCV20-1 30850003
G 3/8" 10 mm NO 0...16 bar 4...8 bar 24VDC / 48V/50-60Hz Standard CSE02-38-10-AT-ABS77-C001-03-C002-31-6 30850004
G 3/8" 10 mm NO 0...16 bar 4...8 bar 24VDC / 48V/50-60Hz With integrated LED-yellow and VDR CSE02-38-10-AT-ABS77-C001-03-C002-31-LV-2 30850005
G 3/8" 10 mm NO 0...16 bar 4...8 bar 24VDC / 48V/50-60Hz With integrated LED-yellow, VDR and PVC-cable (2 m) CSE02-38-10-AT-ABS77-C001-03-C002-31-LVCV20-2 30850006
G 3/8" 10 mm NC 0...16 bar 3...8 bar 230V/50-60Hz Standard CSE01-38-10-AT-ABS77-C001-22-C002-31-6 30850008
G 3/8" 10 mm NC 0...16 bar 3...8 bar 230V/50-60Hz With integrated LED-yellow and VDR CSE01-38-10-AT-ABS77-C001-22-C002-31-LV-1 30850009
G 3/8" 10 mm NC 0...16 bar 3...8 bar 230V/50-60Hz With integrated LED-yellow, VDR and PVC-cable (2 m) CSE01-38-10-AT-ABS77-C001-22-C002-31-LVCV20-1 30850010
G 3/8" 10 mm NC 0...16 bar 3...8 bar 24VDC / 48V/50-60Hz Standard CSE01-38-10-AT-ABS77-C001-03-C002-31-6 30850011
